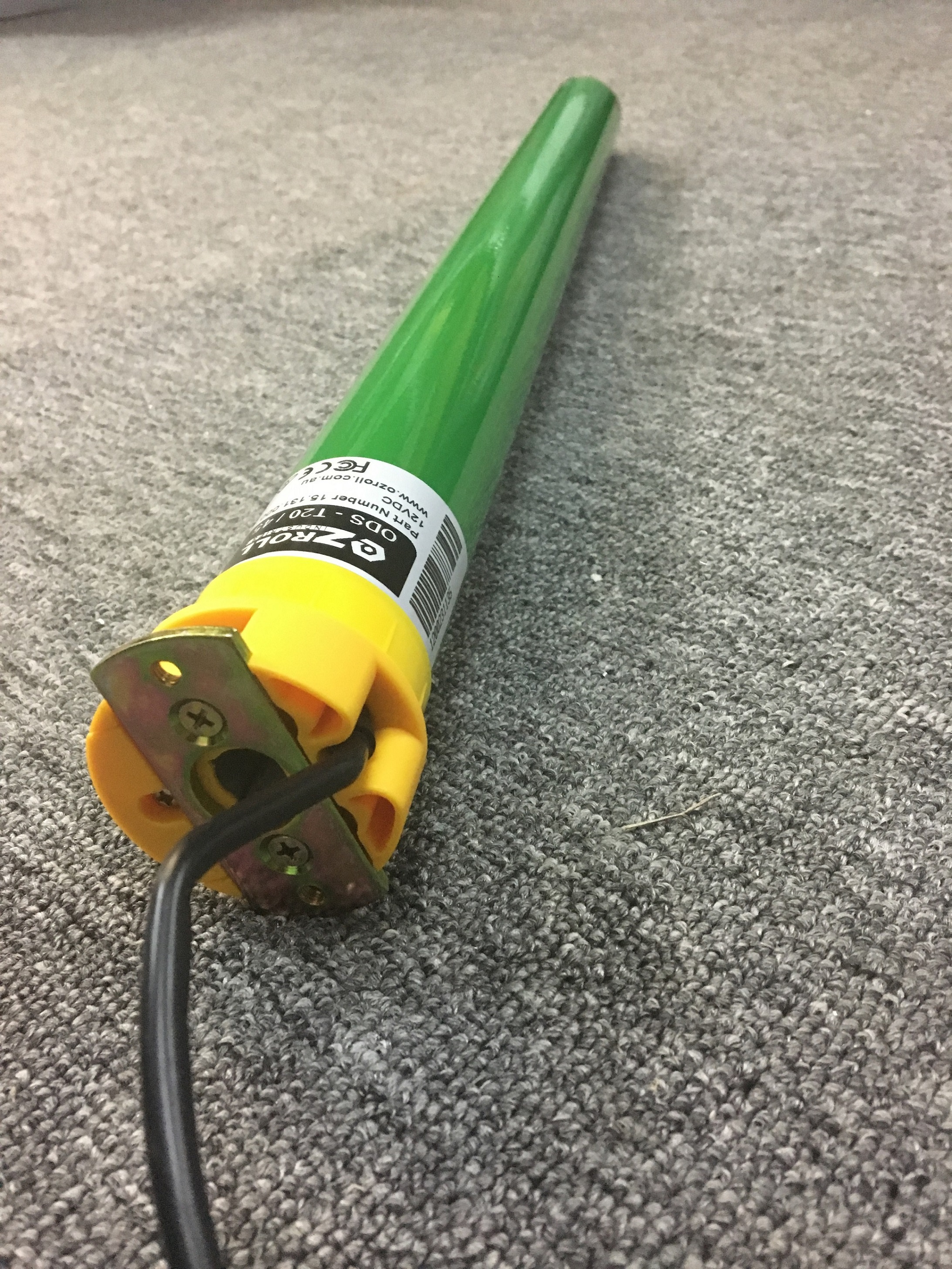

ODS T20 low volt mech

T20 Mech roller shutter spare parts

The T20 tubular motor has been specifically designed to suit the current Oz Roll Drive System using both the ODS & E- Series Controllers and is compatible with both the Standard and the RF controllers.

With a lifting capacity twice that of the L10 mech and the ability to suit even the smallest of head boxes, the T20 tubular motor retains all of the benefits of a low voltage /battery back up system.

It is simply a Smarter and Safer alternative to the current 240v system enabling operation during a power blackout and is not reliant on the services of a licensed electrician or mains power.

Installation is really quick and simple with the T20 tubular motor having mechanical limit settings and nominal speed of 16RPM. A tool is provided with each motor so you can set the “Up” and “Down” end limits.

Please note: This can take up to 30 rotations of the limits screw on the motor head.

Drive Wheel Kits:

You will need a drive wheel kit if you are converting from a strap control or an L10 Mech they are available to suit both the 50mm round and 60mm Octagonal axles let me know on checkout.. roller shutter motor



Technical Specifications – T20 Tubular Motor

Nominal Torque: 20NmNo Load Speed: 16rpm Max Operating Current: 4.2 Amps Nominal Voltage: 12 volts Internal End Stop Limits: 32 turns

The Ozroll T20 Has A Maximum Lifting Capacity of 32kg

Curtain weight: 1sq mtr = 4kg = 8square meter of shutter (for example, 3200mm x 2500mm window maximum) or any other combination that equals 8 square metres or less.



T20 tubular motor
